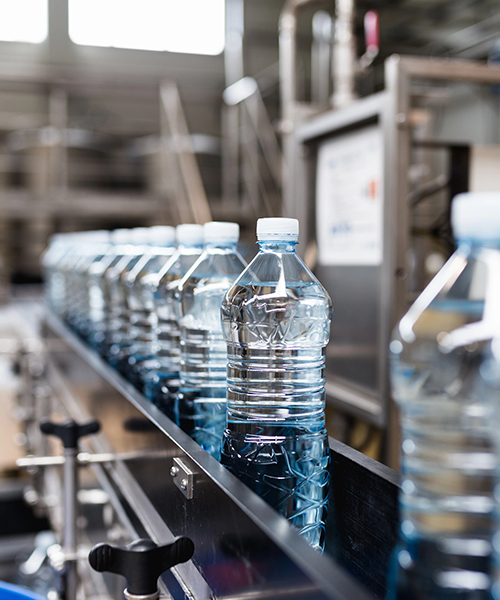

Bottled & Barreled Water Production Line

Technical Specifications

Bottled & Barreled Water Production Equipment Customization Instructions
Our bottled and barreled water production equipment is fully customizable to meet your specific production needs (such as output, bottle/barrel specifications, and water quality standards). The production process and workflow are as follows, which can be adjusted according to your customization requirements: I. Production Process (Core Workflow) 1. Raw Water Pretreatment: Raw water (tap water, groundwater, etc.) is filtered through quartz sand, activated carbon, and precision filters to remove impurities, turbidity, odor, and residual chlorine, laying a foundation for subsequent purification. 2. Deep Purification: The pretreated water is purified by reverse osmosis (RO) system or ultrafiltration (UF) system to remove harmful substances such as heavy metals, bacteria, viruses, and dissolved solids, ensuring the water meets drinking water standards. 3. Sterilization & Disinfection: The purified water is sterilized by ozone or ultraviolet (UV) disinfection to eliminate remaining bacteria and microorganisms, ensuring the safety and shelf life of the finished water. 4. Filling & Capping: For bottled water: The sterile water is automatically filled into bottles, followed by capping, labeling, and coding. For barreled water: The water is filled into 5-gallon (or other specifications) barrels, and the barrels are sealed with caps after filling. 5. Inspection & Packaging: The filled products are inspected for leakage, water level, and labeling. Qualified products are packed into cartons or pallets for storage and transportation. II. Customization Instructions We can customize the equipment according to your actual needs, including but not limited to: - Production capacity (e.g., 500-5000 bottles/hour for bottled water, 100-1000 barrels/hour for barreled water). - Bottle/barrel specifications (e.g., 330ml-2L bottles, 5-gallon/10-gallon barrels). - Purification process (RO/UF system configuration, according to local raw water quality). - Additional functions (e.g., automatic bottle washing, automatic coding, intelligent control system). Please inform us of your specific requirements, and we will provide you with a tailored production equipment solution.

Bottled & Barreled Water Production Equipment Customization Instructions

Our bottled and barreled water production equipment is fully customizable to meet your specific production needs (such as output, bottle/barrel specifications, and water quality standards). The production process and workflow are as follows, which can be adjusted according to your customization requirements:
I. Production Process (Core Workflow)
1. Raw Water Pretreatment: Raw water (tap water, groundwater, etc.) is filtered through quartz sand, activated carbon, and precision filters to remove impurities, turbidity, odor, and residual chlorine, laying a foundation for subsequent purification.
2. Deep Purification: The pretreated water is purified by reverse osmosis (RO) system or ultrafiltration (UF) system to remove harmful substances such as heavy metals, bacteria, viruses, and dissolved solids, ensuring the water meets drinking water standards.
3. Sterilization & Disinfection: The purified water is sterilized by ozone or ultraviolet (UV) disinfection to eliminate remaining bacteria and microorganisms, ensuring the safety and shelf life of the finished water.
4. Filling & Capping: For bottled water: The sterile water is automatically filled into bottles, followed by capping, labeling, and coding. For barreled water: The water is filled into 5-gallon (or other specifications) barrels, and the barrels are sealed with caps after filling.
5. Inspection & Packaging: The filled products are inspected for leakage, water level, and labeling. Qualified products are packed into cartons or pallets for storage and transportation.
II. Customization Instructions
We can customize the equipment according to your actual needs, including but not limited to:
- Production capacity (e.g., 500-5000 bottles/hour for bottled water, 100-1000 barrels/hour for barreled water).
- Bottle/barrel specifications (e.g., 330ml-2L bottles, 5-gallon/10-gallon barrels).
- Purification process (RO/UF system configuration, according to local raw water quality).
- Additional functions (e.g., automatic bottle washing, automatic coding, intelligent control system).
Please inform us of your specific requirements, and we will provide you with a tailored production equipment solution.

Key Features & Benefits

High Purity Water

Multi-stage RO filtration system removes impurities, heavy metals, bacteria, and odors for safe drinking water.

Energy Saving

Low power consumption design with high-efficiency pump, reducing operating costs for long-term use.

Stable Performance

Industrial-grade components ensure continuous and stable operation even in heavy-duty environments.

Safe & Durable

Food-grade materials, leak-proof design, and automatic protection system for maximum safety.
